PAC-MAG — High-Intensity Inline Magnetic Separator (MHD Magnets Partnership)
The PAC-MAG is the result of K Factor's partnership with MHD Magnets of Belgium — Europe's leader in ferrous particle removal for industrial process fluid applications. The PAC-MAG (also referred to as the PACMAN) is designed specifically for micron-size ferrous particle removal from degreasing fluids and similar low-viscosity process streams where conventional magnetic separators lack the field strength to capture fine particles effectively.
The PAC-MAG uses high-grade permanent magnets at 0.6 Tesla effective magnetic flux density (per MHD Magnets specification) combined with a decelerated, optimised flow path and up to 2.7 m² of magnetic surface area. The result: capture of micron-size ferrous particles — including sub-1 micron contamination that passes straight through conventional drum separators — at full process flow with no power consumption.
How the PAC-MAG works
PAC-MAG specifications
PAC-MAG specifications
- Magnetic flux density
- 0.6 Tesla (6,000 Gauss) permanent magnet (per MHD Magnets specification)
- Magnetic surface area
- Up to 2.7 m²
- Ferrous particle capture
- Micron-size particles including sub-1 micron
- Fluid velocity
- Decelerated longitudinal or transverse flow > 0.4 m/sec
- Maximum solid load
- 30 kg (dry weight) per m² magnetic surface
- Self-cleaning
- Automatic spray cleaning system — configurable frequency based on contamination rate
- Control
- On-board industrial PLC — stand-alone or integrated with ROTOMAG or factory system
- Materials
- 316L stainless steel magnetic elements
PAC-MAG views & lineup

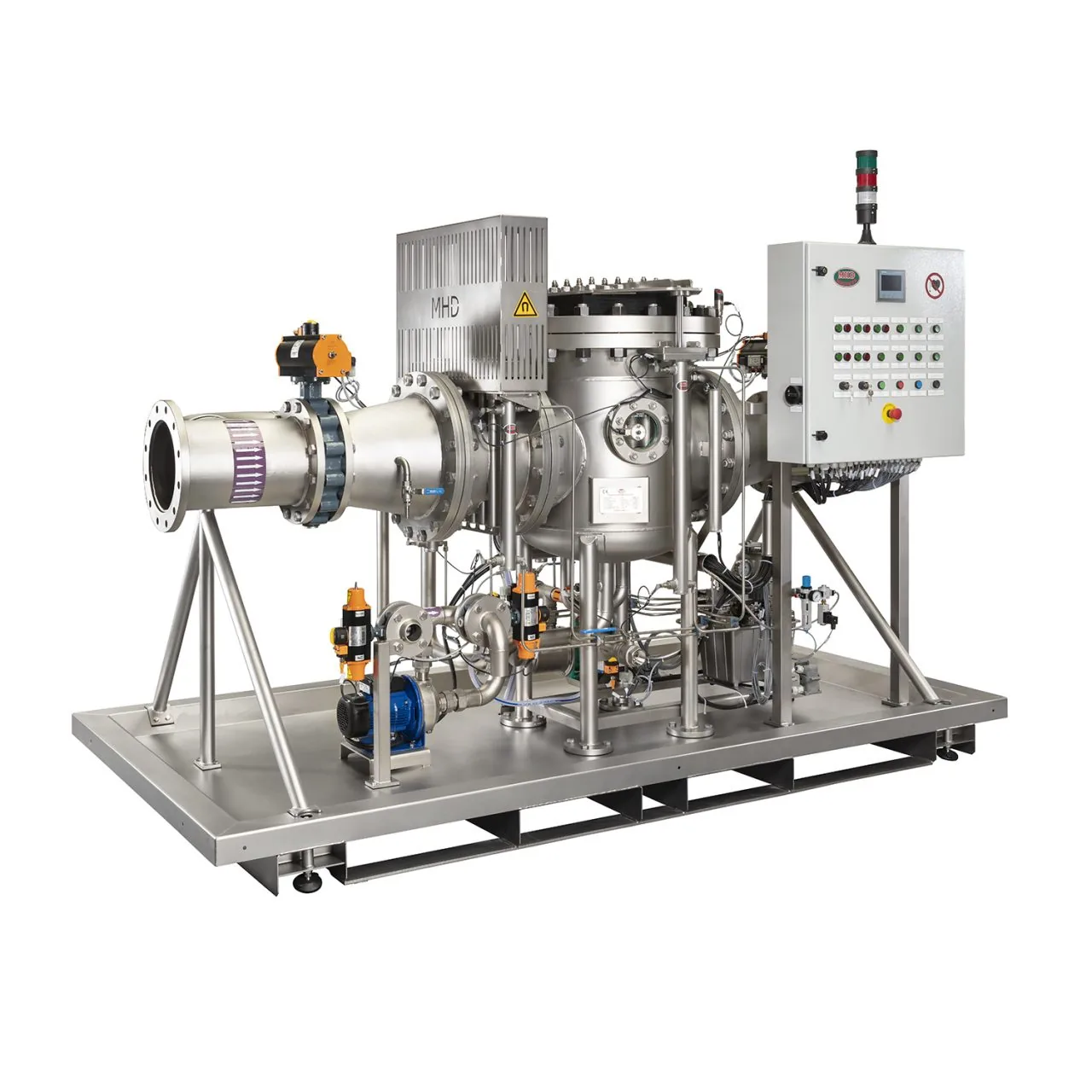

Front view

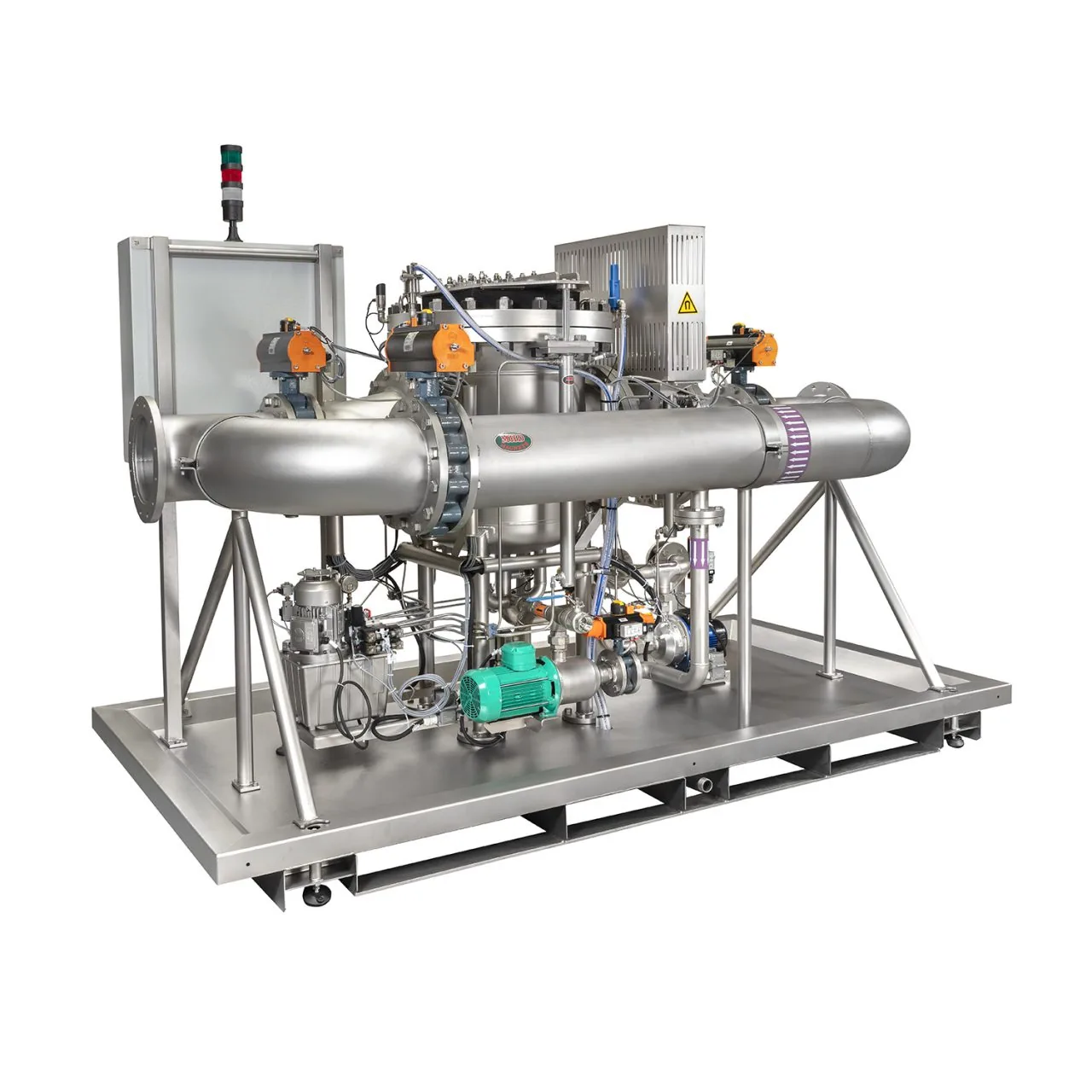

Back view

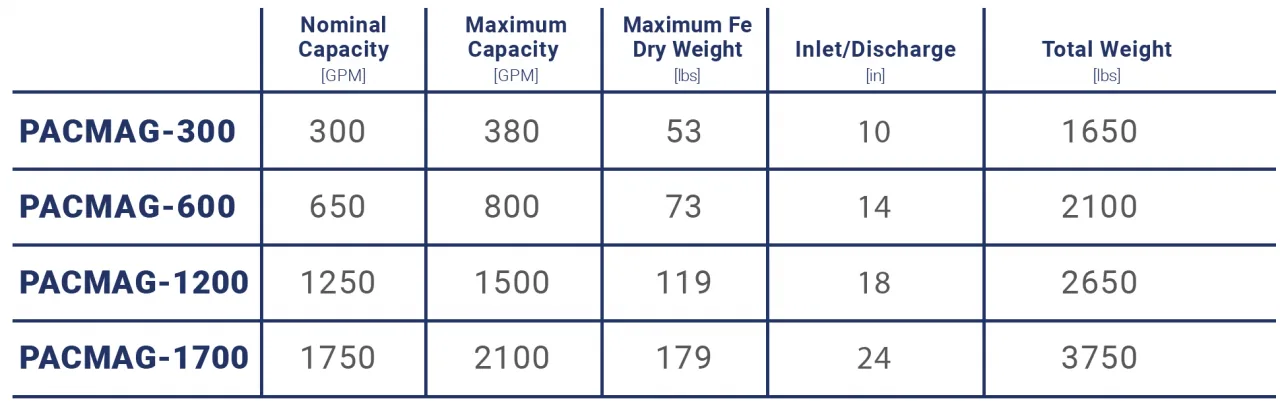

PAC-MAG model size lineup
Modular design — configure to your duty

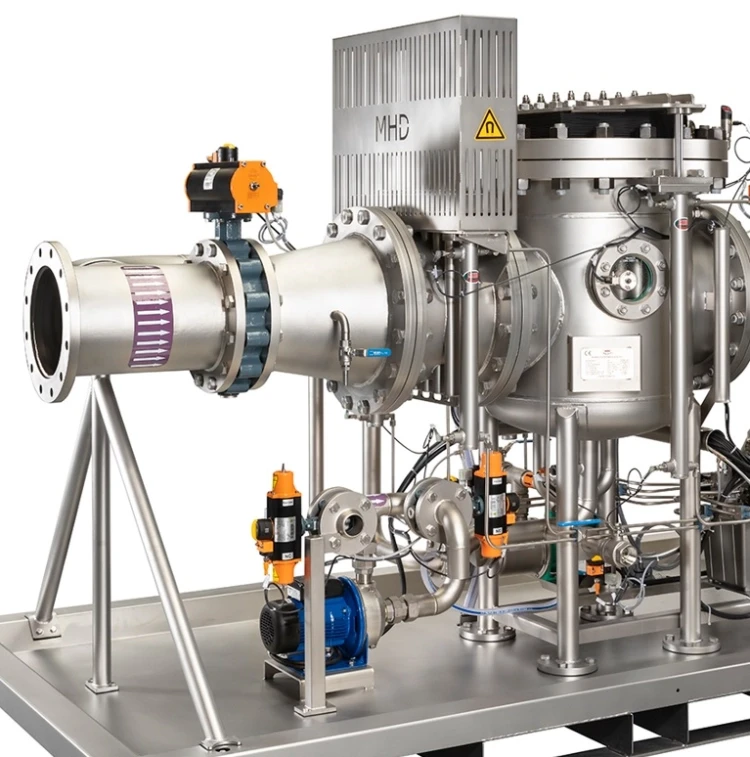

Modular cassette construction

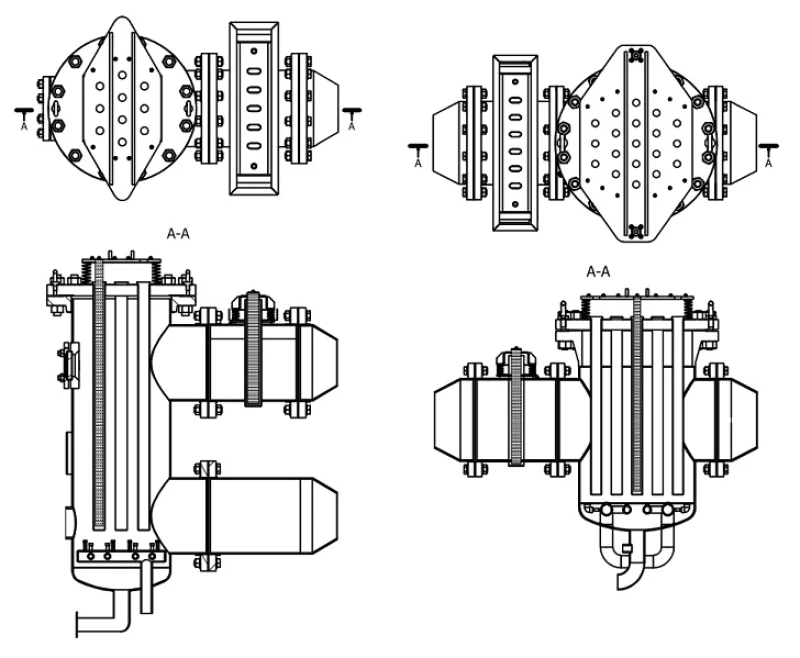

PreMag pre-separation

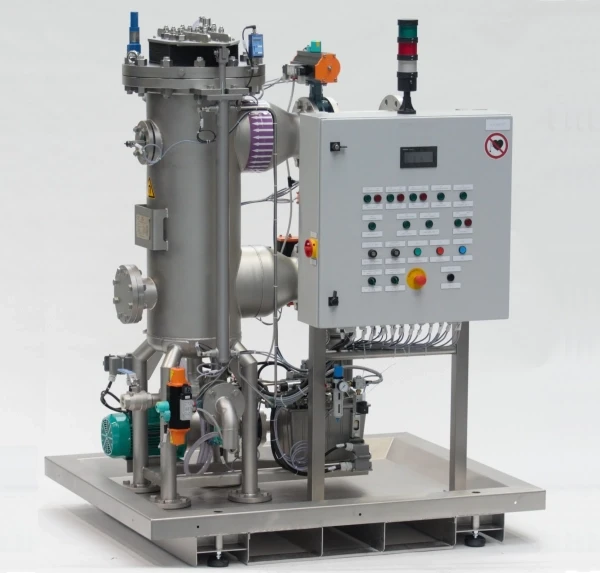

PAC-MAG 150
PAC-MAG + ROTOMAG system
For maximum ferrous particle removal efficiency, the PAC-MAG first-stage separator works in combination with the ROTOMAG second-stage roller-type separator. The ROTOMAG removes residual ferrous particles from the PAC-MAG purge fluid — recovering the process fluid and concentrating the ferrous solids for disposal or recycling. The combined system achieves near-complete ferrous particle removal from high-contamination streams in a single pass.
- —System stages: PAC-MAG (first stage) + ROTOMAG (second stage) — series configuration
- —Recovery: Near-complete ferrous removal; process fluid recovered from purge stream
- —Integration: Factory control system integration available
Best fit
High-intensity applications requiring sub-micron ferrous capture; degreasing baths and aqueous cleaners where fine metallic particles degrade bath chemistry; facilities where ferrous particles have been bypassing conventional drum separators. The highest field strength in the K Factor lineup — and among the highest available commercially anywhere.
