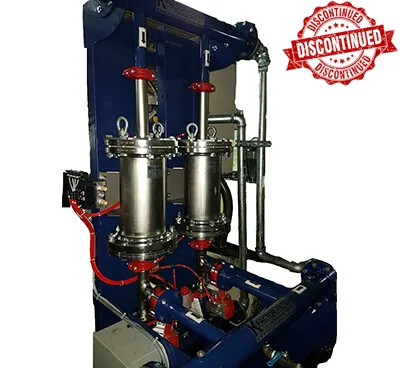

K-MAG — High-Intensity Automatic Inline Separator
The K-MAG is K Factor's high-intensity automatic inline magnetic separator designed for coolant and process fluid circuits where ferrous particle removal is required continuously and automatically with smart purge management. The K-MAG's unique internal flow path modifies flow velocity to maximise contact time between the fluid and the magnetic field — achieving capture rates 80% better than conventional magnetic separators of equivalent size and field strength.
When an established quantity of ferrous debris has been captured on the magnetic tubes, an automatic purge is initiated. During purging, dirty fluid is diverted from the clean outlet, the magnetic force is removed from the tubes, and 100% of the captured solids are discharged rapidly into the optional Smart Drum. The Smart Drum's magnetic pull then draws the purged ferrous debris onto the Black Belt conveyor for transport to the collection area — completing a fully automatic capture-and-removal cycle with no operator involvement.
Key advantages
- —Capture advantage: 80% better than conventional magnetic separators — unique internal flow path maximises particle-to-field contact time
- —Automatic purge: Sensor-triggered purge with full capture-and-discharge cycle — 100% solids removal per purge
- —Smart Drum integration: Optional Smart Drum captures purged ferrous solids and transfers via Black Belt conveyor
- —Applications: Coolant circuits, grinding fluid, degreasing solutions, process water with moderate-to-high ferrous loading
The K-MAG is the upgrade path for facilities already running a competitive magnetic separator: 80% better capture rate versus conventional separators makes it the right choice for coolant circuits where conventional magnetic separators have provided inadequate capture, and for multi-machine systems where a single magnetic separator serves several CNC machines.
Still running media filters that consume rolls every few hours in grinding?
K Factor's 30-day free trial is available for magnetic separation systems. We assess your ferrous particle loading, fluid type, flow rate, and downstream filtration system. We commission the appropriate GT-MAG, PAC-MAG, or K-MAG inline in your circuit. You run it for 30 days and measure the reduction in media consumption, coolant clarity, and tool life. If the results don't justify the investment, return the system. No invoice. No commitment.
Available to qualifying facilities in the United States, Canada, UAE, Saudi Arabia, and other markets.
