K-OPTIFIL® Automatic Backwash FilterContinuous 1 Micron Filtration with Zero Downtime
Automatic self-cleaning media filtration system engineered for chemical processing, food & beverage, automotive, and power generation facilities. Manufactured in North America, serving industrial operations across the United States.
Engineered for continuous filtration.

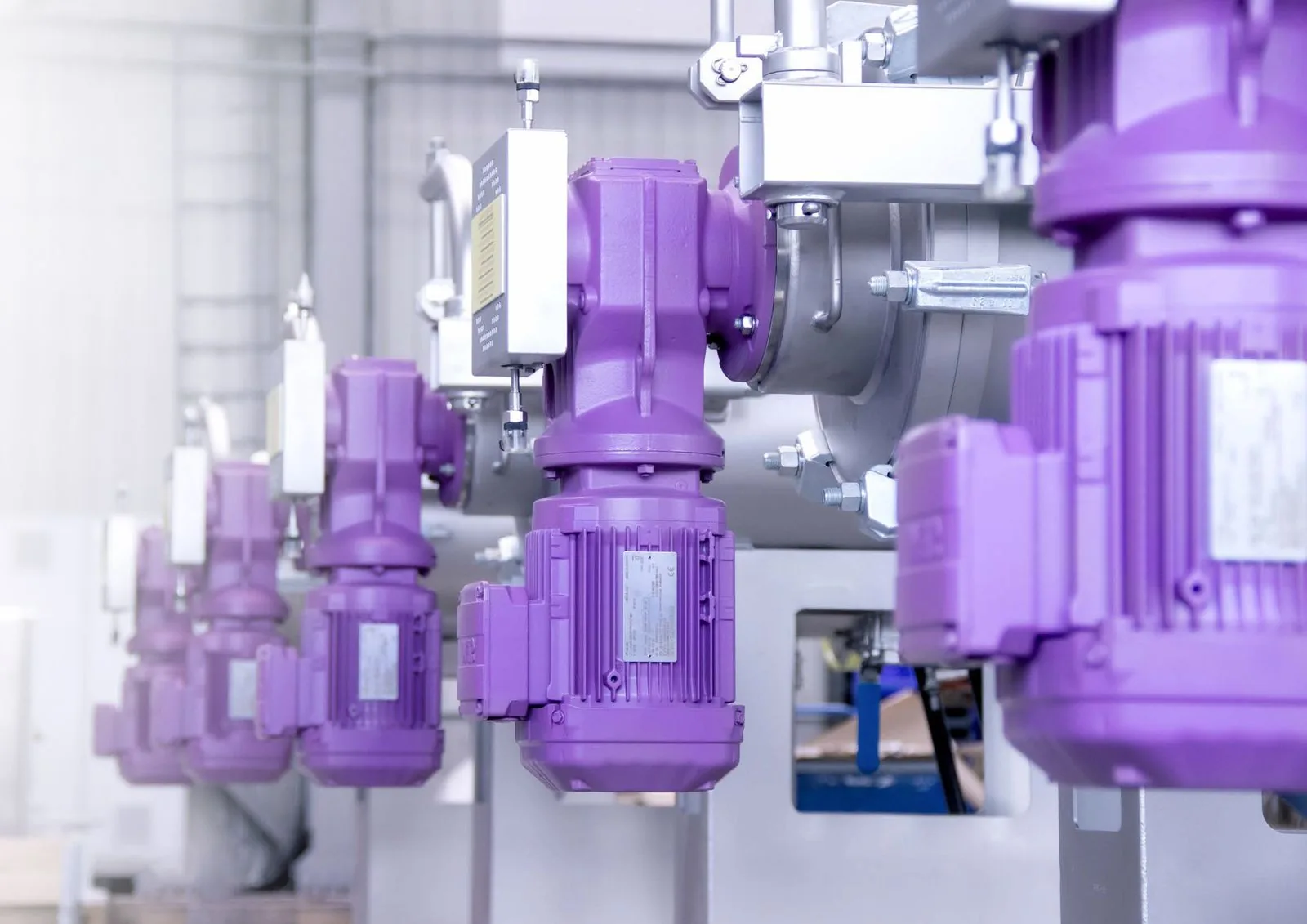

Every stage — from live operation to internal mechanics and the full model lineup.
Continuous backwash. Zero downtime.
Watch a full filtration cycle: dirty fluid in, clean fluid out, and a self-cleaning sweep that runs while production keeps flowing.

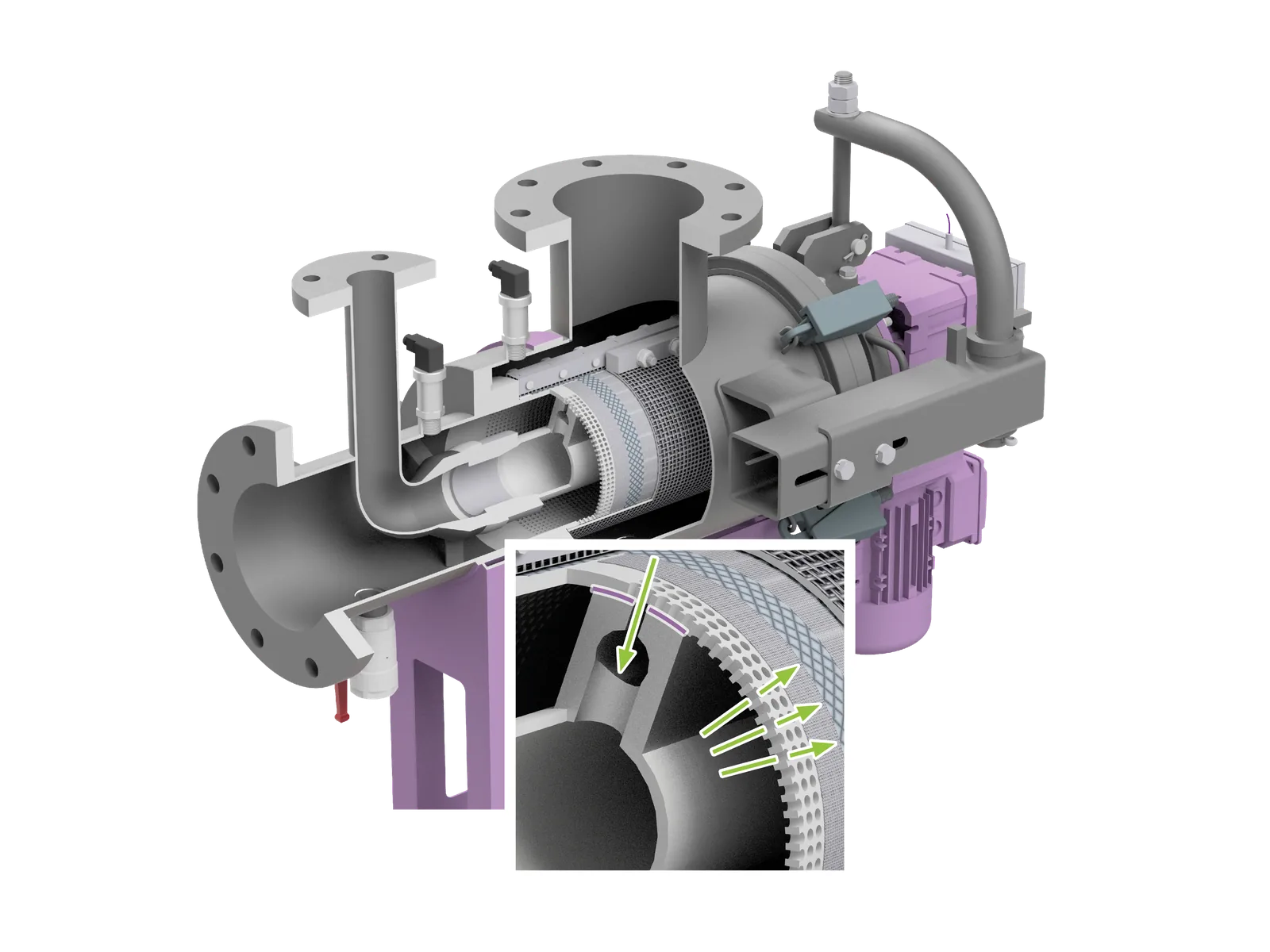

Cross-section: how OptiFil cleans itself.
Process fluid flows from inside the candle screen outward. As particles accumulate, the rotating backwash arm sweeps across the screen and ejects collected solids through the reject port — without interrupting filtration.

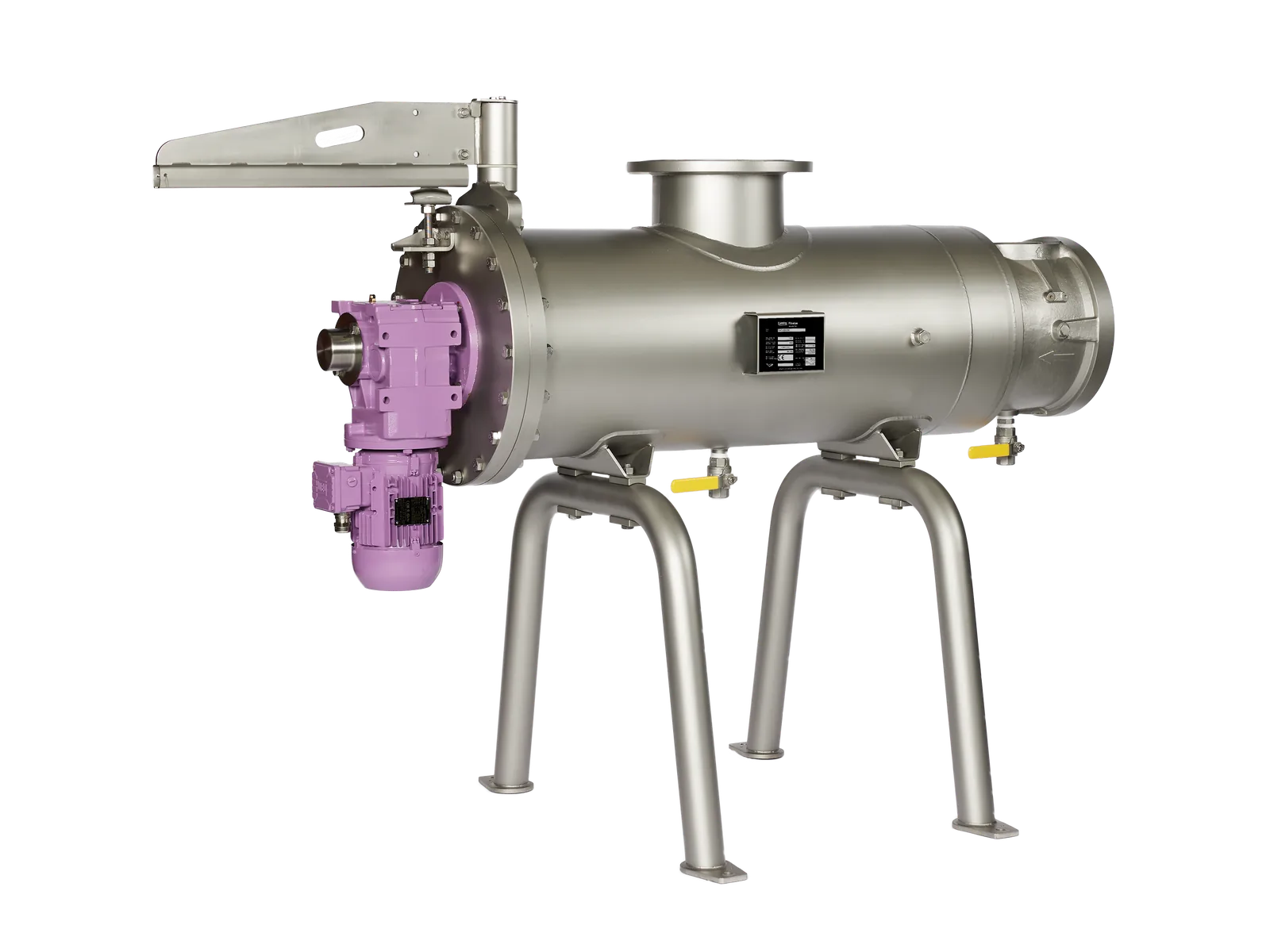

Engineered for industrial duty.
The 250–350 flagship handles up to 500 m³/h with the patented sealed backwash arm — no media to replace, ever.

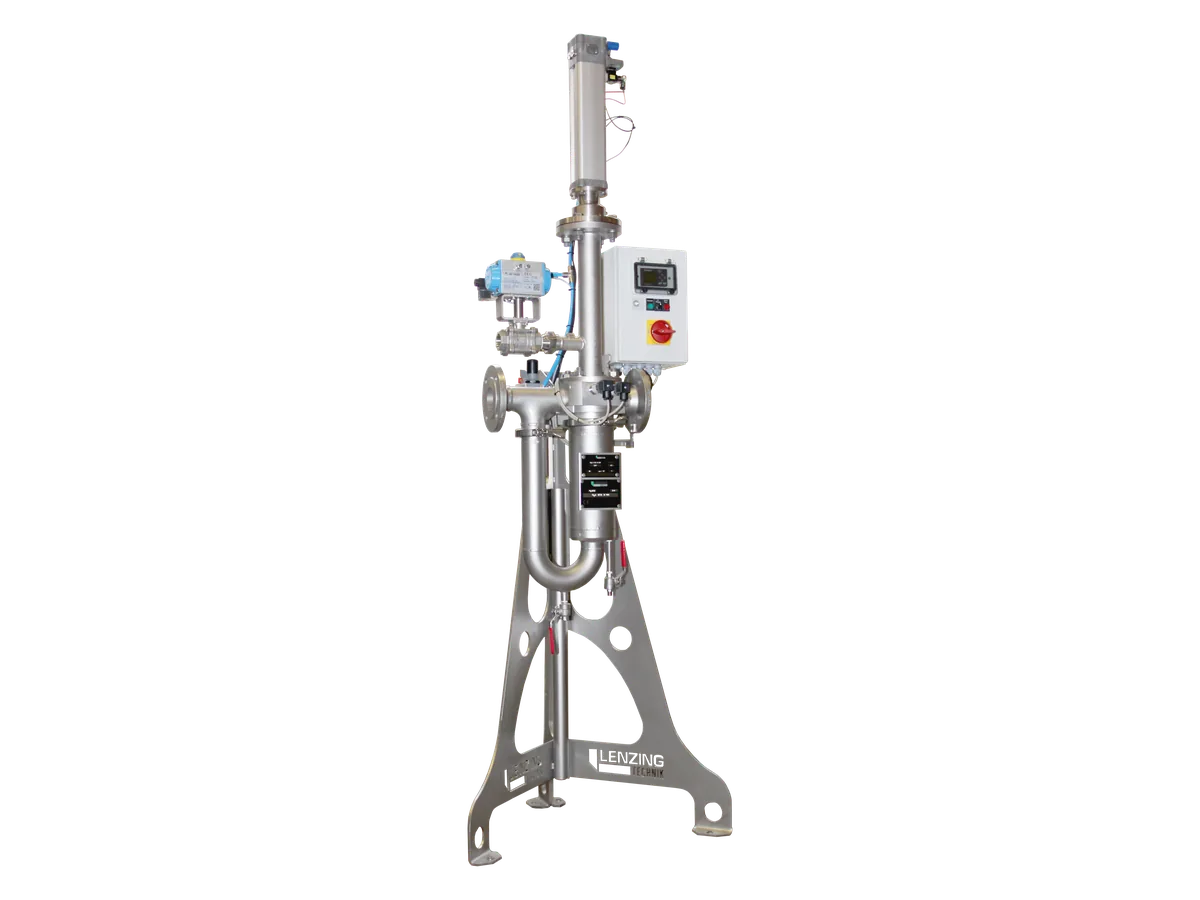

Compact entry size.
The smallest OptiFil model — same self-cleaning principle, sized for low-flow polishing and lab/pilot duty (20 m³/h).
Built here. Deployed worldwide.
Designed and assembled in Hamilton, Ontario. Installed across the United States, Canada, and beyond — backed by a 25-year track record.
Stop Manual Filter Maintenance. Start Automatic Backwashing.
| ❌ Traditional Filters | ✅ K-OPTIFIL® System |
|---|---|
| Manual cleaning 6-10 hours/week | Fully automatic backwash in seconds |
| Downtime every service cycle | Self-cleaning while system stays online |
| Limited to 25-50 micron filtration | Down to 1 micron particle removal |
| 10-15% water waste during backwash | <2% water usage with patented system |
| Frequent consumable replacement | Zero consumables — reusable media |
Automatic. Continuous. Maintenance-Free Filtration.
The K-OPTIFIL® cycle, in four self-cleaning stages.
Patented sealed backwash
Filtration runs from inside the candle screen outward. When the differential pressure across the screen reaches its set-point — or a timer elapses — the rotating arm reverses flow on a very small segment of the screen at a time.
The patented seal between filtrate and reject chambers keeps reject volumes under 2% of total flow, and the rest of the screen keeps filtering throughout the cleaning cycle.
Filtration Phase
The backwash mechanism stays in standby. Process fluid flows from inside the candle screen outward — particles down to 1 µm are captured on the inner face while clean filtrate exits continuously.
ΔP Trigger
Once a preset differential pressure across the screen is reached — or a programmable timer elapses — the automatic backwash cycle is triggered. No operator intervention required.
Localized Backwash
Flow reverses on a very small part of the filter surface. The high local velocity efficiently rinses particles off the screen and ejects them to drain — filtration on the rest of the screen remains intact throughout.
Return to Full Flow
The patented seal between filtrate and reject chamber keeps reject volumes under 2% of total flow. The arm returns to standby and full filtration capacity is instantly restored — 24/7/365.
Engineered for Your Exact Flow Requirements
K-OPTIFIL® Custom Configuration System
| Specification | Range / Options |
|---|---|
| Flow Rate (Customizable) | 5 GPM to 3,000+ GPM — sized to your exact requirements |
| Filtration Fineness | 1 to 200 microns — media selection based on contamination type |
| Operating Pressure | Up to 150 PSI (10 bar) standard; higher pressures on request |
| Design Temperature | 32°F to 248°F (0°C to 120°C) standard; up to 392°F (200°C) high-temp option |
| Inlet/Outlet Connections | Flanged: 2" to 14" (DN 50–350); Threaded NPT for smaller flows |
| Body Material Options | 304 SS (standard), 316 SS (corrosive), Painted Carbon Steel |
| Filter Media Types | SS Mesh (10–200 μm), Non-Woven Fleece (1–50 μm), Polypropylene |
| Control System | Allen-Bradley MicroLogix 1400 PLC, 7" PanelView HMI, VFD motor control |
| Backwash Trigger | Differential Pressure (ΔP), Timer-Based, Manual Override |
| Electrical Options | 120V, 240V, 480V, 575V — 50/60 Hz compatible |
| Certifications | UL/CSA electrical, ASME pressure vessel code |
| Typical Applications | Chemical, F&B, automotive, cooling towers, power gen, pharma, oil & gas, water treatment |
All K-OPTIFIL® systems are custom-engineered to match your specific flow rate, pressure, temperature, and contamination requirements.
Why Industrial Facilities Choose K-OPTIFIL®
Down to 1 Micron Filtration Precision
Capture particles as small as 1 micron to protect heat exchangers, spray nozzles, pumps, valves, and instrumentation. Ideal for pharmaceutical, food & beverage, automotive paint lines, and precision manufacturing.
Patented Low-Water Backwash Technology
Uses less than 2% of total flow for backwash — compared to 10-15% with conventional filters. Typical water savings of $15,000 to $50,000 per year depending on flow rate.
Zero Downtime Operation
Backwash occurs while the system remains fully online. Eliminates 6-10 hours per week of manual maintenance. 24/7/365 continuous operation with no production interruption.
Completely Closed System
Fully enclosed with no operator exposure to hazardous fluids. OSHA compliant for chemical and pharmaceutical applications. Prevents external contamination.
European Engineering + North American Support
Patented sealing technology proven in thousands of installations worldwide. Local engineering, installation, and service from our facility in Hamilton, Ontario. 6-8 week delivery.
No Consumables — Lifetime Reusable Media
Stainless steel media lasts 10-20+ years. Eliminates $5,000-$50,000/year in replacement bags or cartridges. Zero landfill waste.
Proven Performance Across Industrial Applications
K-OPTIFIL® automatic backwash filters deliver reliable, continuous filtration for the most demanding industrial processes in the United States. From fine particulate removal in process water to high-flow cooling tower filtration, K-OPTIFIL® is custom-engineered for your exact requirements.
View All Applications & Case StudiesReal ROI from Our Installations
Chemical Processing Plant — Texas, USA
Frequent heat exchanger fouling requiring monthly shutdowns. Annual maintenance costs exceeded $35,000 with 8 hours of lost production per incident valued at $12,000.
K-OPTIFIL® automatic backwash filter, 300 GPM flow, 25-micron stainless steel media, Allen-Bradley PLC control.
- Zero heat exchanger fouling — no shutdowns required
- $35,000/year maintenance cost eliminated
- $48,000/year production uptime recovered
- 85% reduction in backwash water consumption
- Payback period: 11 months
Food & Beverage Facility — California, USA
$28,000/year spent on disposable bag filters. Manual bag replacement required 20 minutes downtime twice daily. RO membranes fouling every 18 months.
K-OPTIFIL® system (316 SS sanitary), 150 GPM, 5-micron media, automatic timer-based backwash.
- $28,000/year consumable costs eliminated
- 40 hours/week maintenance labor redeployed
- RO membrane life extended to 36+ months — saving $25,000/year
- Zero production downtime for filter maintenance
- Payback period: 9 months
Automotive Manufacturing — Michigan, USA
Paint booth water quality issues. Spray nozzle clogging weekly costing $18,000/year. 5% part rejection rate due to finish quality problems.
K-OPTIFIL® high-flow system, 800 GPM, 25-micron SS mesh, PLC-controlled ΔP-triggered backwash.
- $18,000/year spray nozzle replacement savings
- $18,200/year disposable filter cartridge savings
- Part rejection reduced from 5% to 0.8% — $95,000/year scrap reduction
- Zero downtime for filter maintenance
- Total annual savings: $131,200 — Payback: 4 months
How K-OPTIFIL® Compares to Other Industrial Filtration Systems
| Feature | K-OPTIFIL® | Sand Filters | Bag Filters | Cartridge | Other Backwash |
|---|---|---|---|---|---|
| Filtration Fineness | 1-200 μm | 50-100 μm | 1-200 μm | 1-200 μm | 25-100 μm |
| Fully Automatic | Yes | Semi-auto | Manual | Manual | Yes |
| Downtime for Service | Zero | 30-60 min | 15-30 min | 15-30 min | Partial loss |
| Backwash Water | <2% | 10-15% | None | None | 5-10% |
| Consumables | None | Media 5-10yr | Yes | Yes | None |
| Labor (hrs/week) | 0 | 2-4 | 6-10 | 8-12 | 1-2 |
| Footprint | Compact | Large | Compact | Compact | Medium |
| 10-Year Total Cost | Lowest | Medium | Highest | Highest | Medium |
Bottom Line: K-OPTIFIL® delivers the lowest total cost of ownership for industrial facilities requiring continuous, fine filtration with minimal labor and downtime.
Ready to Eliminate Filter Downtime?
Get a free application assessment from our engineering team. We'll design the perfect K-OPTIFIL® system for your exact requirements.
