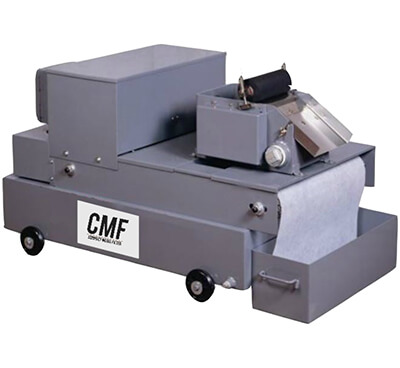

Compact Media Filter (CMF) — Single-Machine Self-Cleaning Filtration
All the performance of the Standard KFF in a footprint that fits beside one machine. Up to 60 GPM. Filtration to 1 micron. No more per-shift bag changes.
What It Is
Compact-footprint automatic media filter for individual machines or low-flow applications up to 60 GPM. Eliminates per-machine cartridge and bag costs for lathes, machining centres, honing, and parts washers — without the cost or complexity of a central filtration system.
Who It's For
Job shops and production cells where a central system isn't justified but per-machine bag and cartridge filter spend has become a recurring P.O. line item — and the labour to swap them is interrupting cycle time.
Full Specifications
| Specification | Compact Media Filter |
|---|---|
| Flow range | Up to 60 GPM |
| Filtration range | Down to 1 micron with appropriate media |
| Fluid compatibility | Water-soluble coolants, straight oils, aqueous cleaners, light chemical solutions |
| Materials of construction | Carbon steel standard · 304 stainless steel optional |
| Operation mode | Fully automatic, 24/7 unattended |
| Power | 120V single-phase indexing motor |
| Control | Float-activated automatic indexing — no PLC required |
| Indexing trigger | Fluid-level float switch (mechanical, no calibration) |
| Footprint | Single-machine compact — fits beside lathes, machining centres, washers |
| Lead time | Standard configurations 4–8 weeks |
How the CMF Works
Four automatic stages, repeated indefinitely, with zero operator intervention.
Inlet diffuser distributes fluid
Coolant or wash fluid from the machine sump enters the housing through a top header that spreads flow uniformly across the media — no channeling, no media bypass.
Gravity flow & cake build
Fluid passes through the non-woven media bed by gravity. Solids accumulate as a filter cake, capturing progressively finer particles as the cycle continues.
Float senses saturation
When the cake restricts flow and fluid level rises, a mechanical float trips the indexing motor. No PLC, no operator, no wear-prone sensors.
Media advances automatically
The motor indexes fresh media into position by a metered increment. Spent media drops to the sludge bin. Filtration resumes immediately — no interruption to the machine.
Target Applications
Where the CMF replaces per-machine bags and cartridges.
Lathes
Single-spindle to multi-axis
Machining centres
VMC & HMC coolant
Honing machines
Fine-finish coolant clarity
Parts washers
Aqueous wash recovery
Single-machine coolant
Per-cell sump filtration
Low-flow chemical baths
Specialty cleaning chemistries
Why CMF Over Cartridge or Bag
Fits beside one machine
No central system, no plumbing campaign. The CMF installs in the cell — typically in under a day — and serves a single sump.
Self-cleaning automation
Float-activated indexing runs 24/7 unattended. The operator stops swapping bags every shift.
Eliminates per-machine cartridges
One CMF replaces a recurring cartridge or bag P.O. for the life of the machine. Roll media lasts 5–10× longer.
Not sure if the CMF will work on your machine?
Run it on your actual sump for 30 days. We commission on-site, you measure the results, and if it doesn't justify the investment we take it back. No invoice. No obligation.
