Corrosion-Resistant Media Filtration

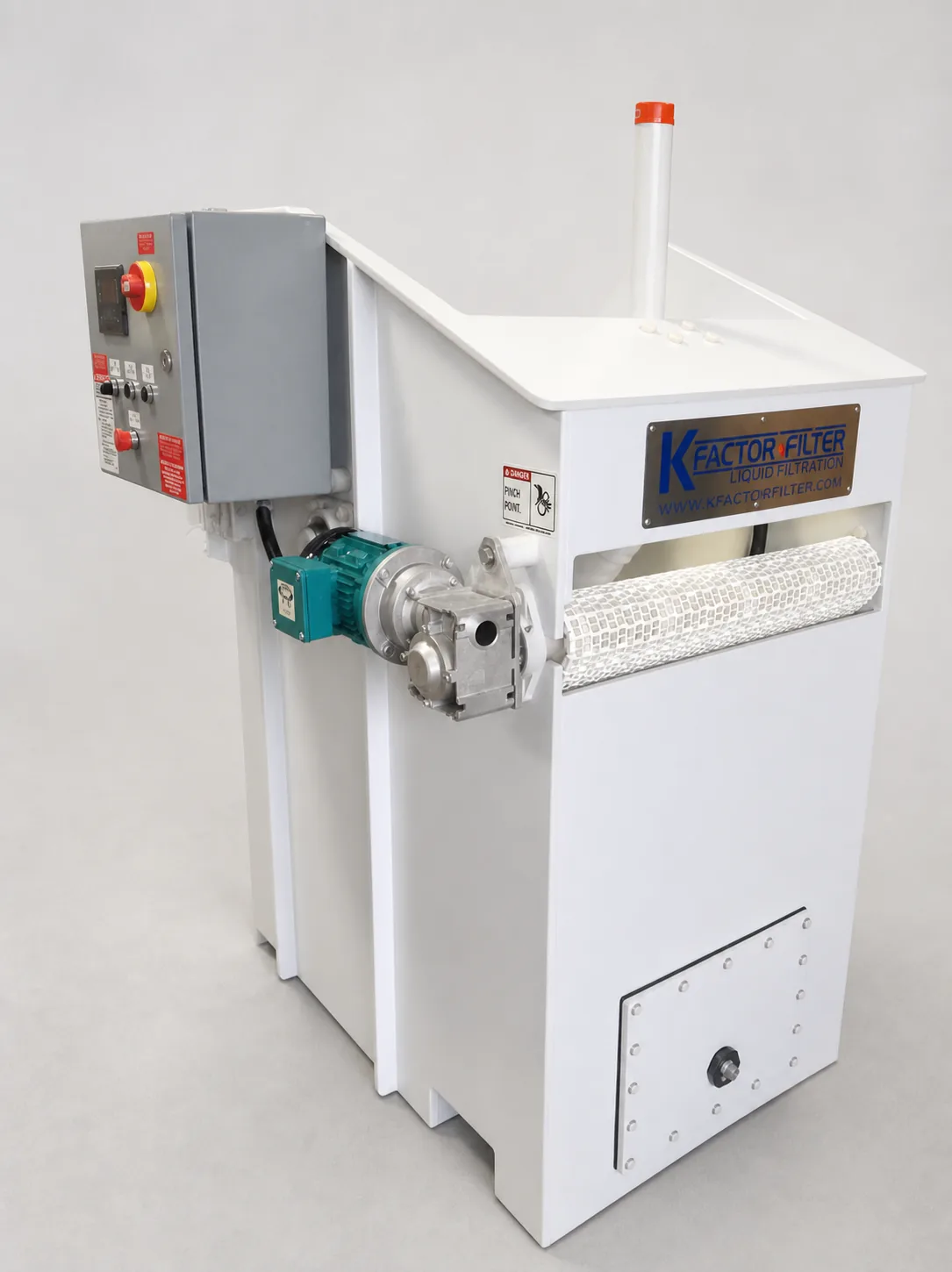

Plastic Filter for Corrosive Industrial Liquids
A fully automatic, self-cleaning filter manufactured from chemical-resistant plastics selected for your process chemistry. Designed for continuous filtration without backwashing or interrupting production.
Published Product Specifications
Final materials and media are selected after reviewing the process liquid and corrosive agents.
| Flow range | 5 GPM and up — engineered to the application |
|---|---|
| Construction | Chemical-resistant plastic selected for the process fluid |
| Operation | Fully automatic, self-cleaning, continuous filtration |
| Filter media | Application-specific media selected for the required result |
| Cleaning trigger | Rising liquid level activates the automatic cleaning cycle |
| Primary markets | Automotive, petrochemical, and corrosive-liquid processes |

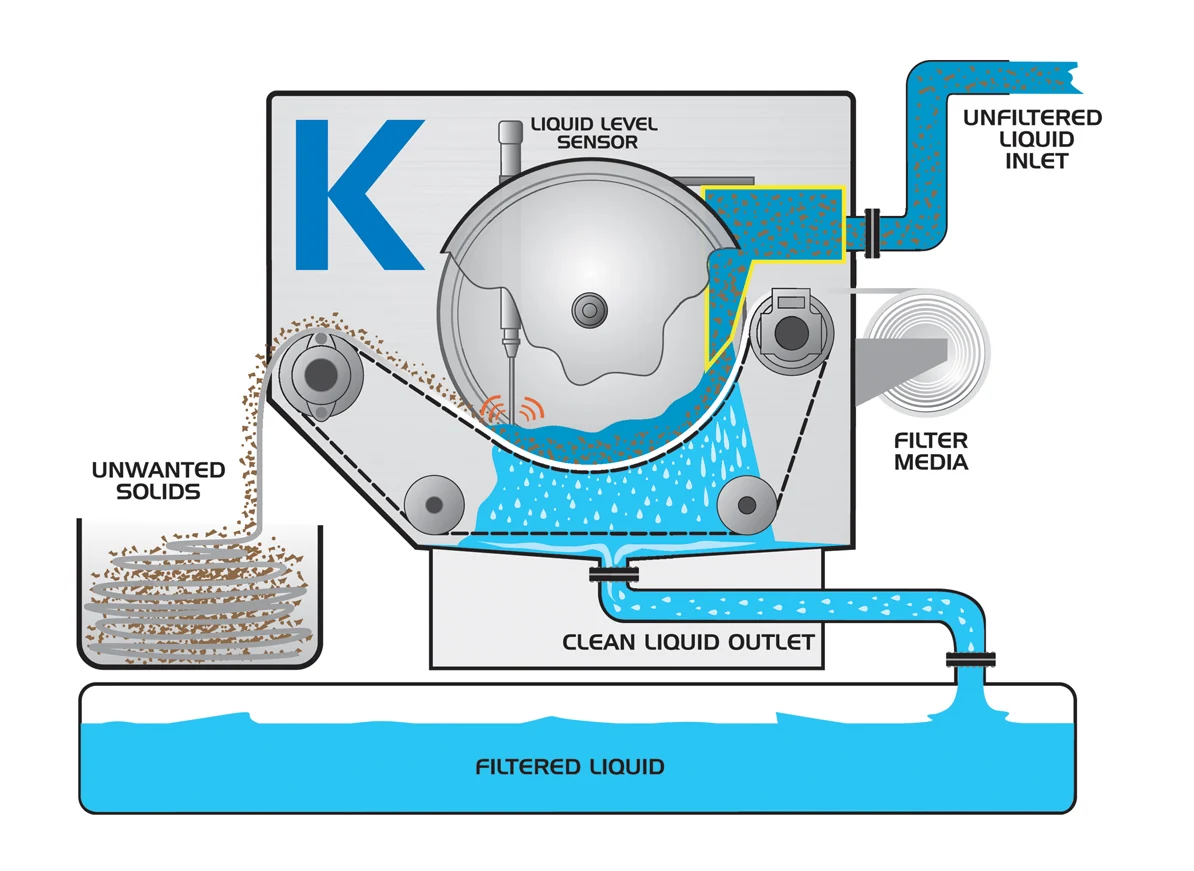

How the Plastic Filter Works
Distribute the incoming liquid
Contaminated liquid enters through the header box and is distributed across the selected filter media.
Capture suspended solids
The liquid is confined between the sealing wheels while the media captures suspended contamination.
Advance fresh media automatically
As captured solids restrict flow, the liquid level rises and activates the cleaning cycle. Fresh media advances while soiled media exits the filtration area.
Return clarified liquid
Filtered liquid is collected below the media and returned to the process for continued use.
Documented Advantages
Corrosion-resistant construction for aggressive process liquids
Automatic operation with no production stop for media advancement
No backwashing and no backwash-water waste stream
No solids bypass and no liquid loss during the filtration cycle
Application-specific media for the required filtration result
Available from 5 GPM upward for project-specific systems
Plastic Filter FAQs
What is the K Factor Plastic Filter?
It is a fully automatic media filtration system built from chemical-resistant plastics selected for the liquid and corrosive agents in the application.
What flow rates are available?
The published range starts at 5 GPM. Larger systems are engineered to the required flow, chemistry, solids loading, and installation conditions.
Does the Plastic Filter require backwashing?
No. When the media loads with solids, the liquid level rises and triggers the system to advance fresh media automatically.
Which industries use a Plastic Filter?
The supplied K Factor datasheet identifies automotive and petrochemical applications, particularly where corrosion-resistant construction is required.
Need filtration for a corrosive liquid?
Send the process chemistry, flow rate, operating temperature, and solids details. K Factor will select compatible construction and filter media for the application.
