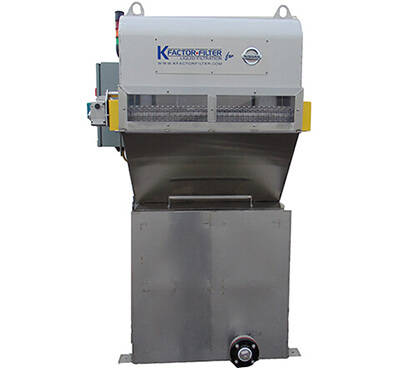

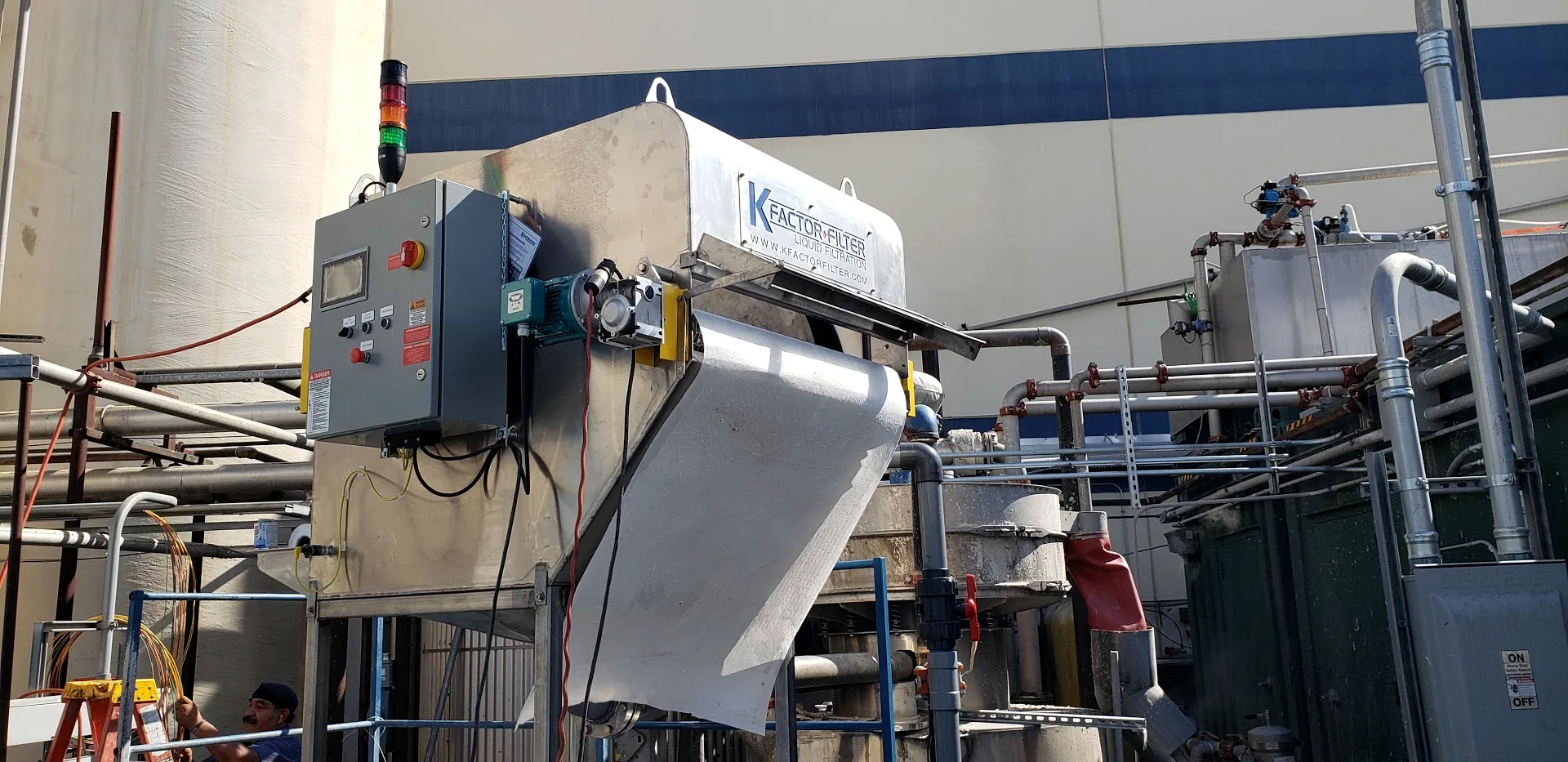

The K Factor Filter
Simplicity is the ultimate sophistication.
A self-cleaning roll-media filter, chosen by major manufacturers around the world to solve their toughest liquid filtration problems.
- Gravity does the work.
- No bags or cartridges to replace. No hard work.
- Simple to run, easy to maintain.
- Turnkey, configured to your process.
- SAFETY: Stop changing bags by hand.
- QUALITY: Stop sanding out paint defects.
- PRODUCTIVITY: Stop particles from stopping your line.
- COST: Save up to $1M a year.
- ENVIRONMENT: Reuse water — less chemical, less treatment.
Runs in
- Automotive
- Nuclear
- Chemical
- Oil & gas
- Agriculture
- Food
- Municipal
- Particle board
- Pulp & paper
- Steel & metals
- Cement
- Parts manufacturing
- Stack scrubbing
Built for the dirty jobs
COST · up to $1M a year
Wood panel & board plants
Wash and process water loaded with fibre, resin and grit.
PRODUCTIVITY · no clogged lines
Metals & steel
Mill scale and heavy sludge out of rolling and processing water.
PRODUCTIVITY · no unplanned stops
Food & agri processing
Scale and solids out of process water, around the clock.
ENVIRONMENT · less water, less chemical
Process water reuse
Take the solids out so the water goes back into the process.
Six sizes, one principle
| Model | Flow GPM | Flow LPM | Inlet | Outlet |
|---|---|---|---|---|
| K70 | 70 | 265 | 2" | 3" |
| K150 | 150 | 568 | 3" | 4" |
| K300 | 300 | 1,136 | 4" | 6" |
| K600 | 600 | 2,271 | 6" | 8" |
| K1100 | 1,100 | 4,164 | 8" | 10" |
| K1500 | 1,500 | 5,678 | 10" | 12" |
Rated at 25 µm nominal; K1500 at 50 µm. Media selected for your liquid.
- Body
- Powder-coated carbon steel or 304 stainless.
- Controls
- PLC and touchscreen HMI, built in our UL 508A panel shop.
- Media
- Roll media chosen for the application; media-out sensor.
- Options

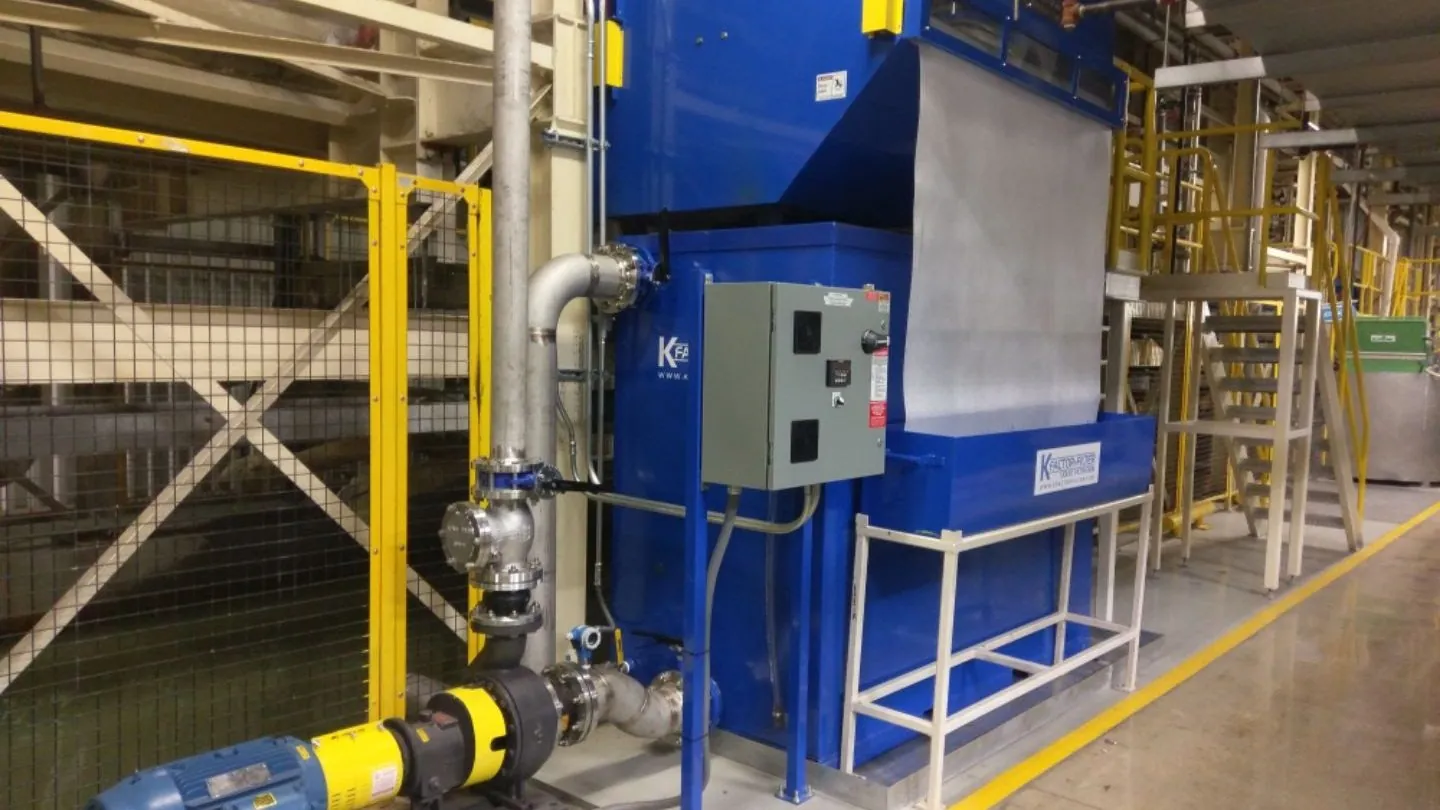

- Integrated tank with pump and level control, inlet valves, float shower, rewinder, top cover with window, 240/380/575 V.

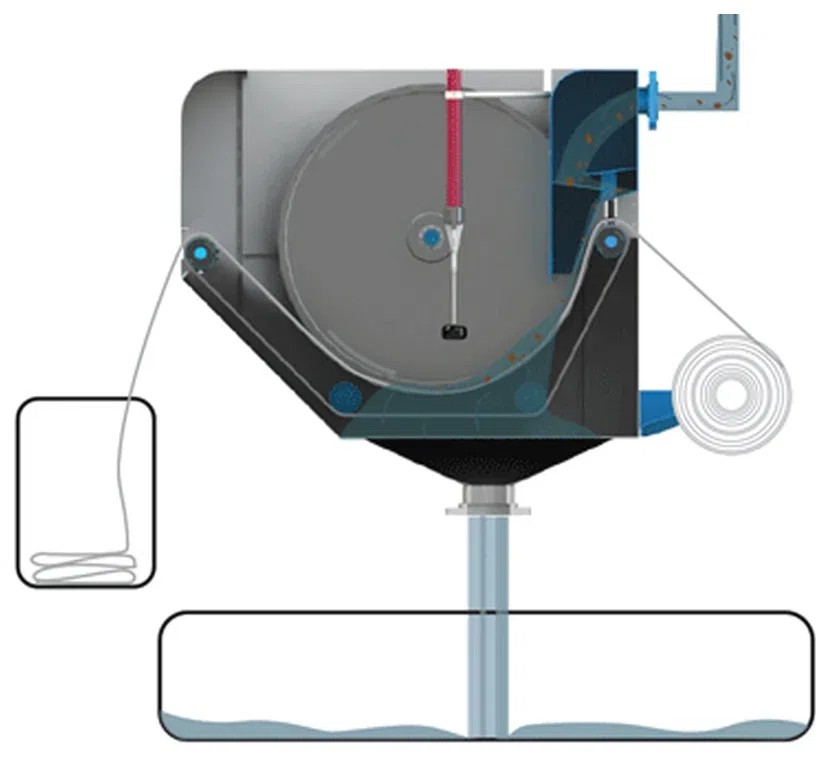

How it works
Gravity does the work
Four steps, repeated around the clock. Nobody touches the filter.
Filtering
Even distribution
The liquid enters a header box that spreads it evenly across the media.
Solids captured
Held between two sealing wheels, the media catches the solids. Gravity pulls clean liquid through.
Self-cleaning
Automatic cycle

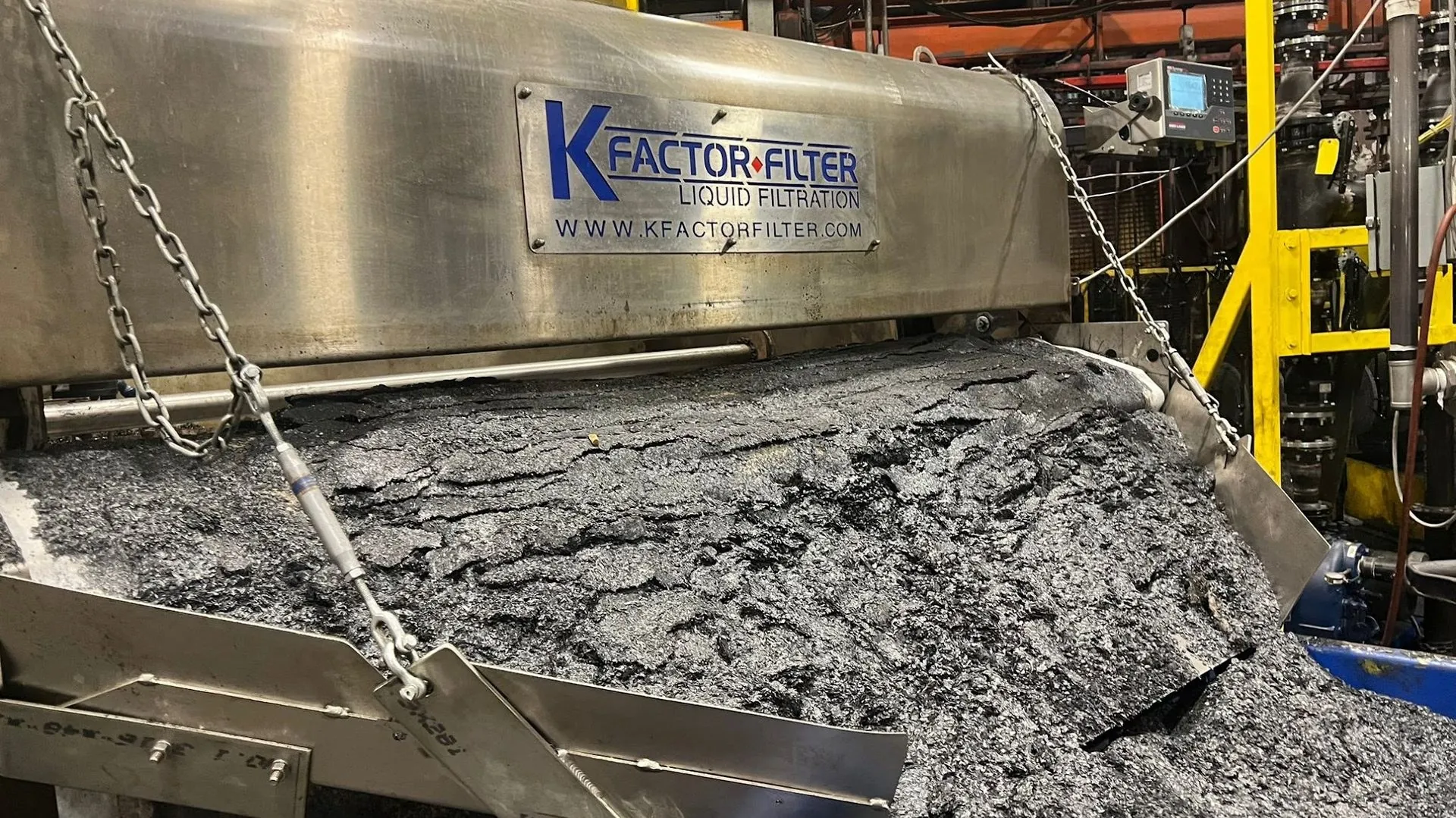

As the level rises, a float starts the cycle: fresh media rolls in, loaded media rolls out to the bin.
Clean liquid back
Filtered liquid collects in the tank below and returns to your process.
Explore the K Factor Filter
Turn it around. See what's built in.
Use the arrows to turn the filter. Each view points out what you are looking at.

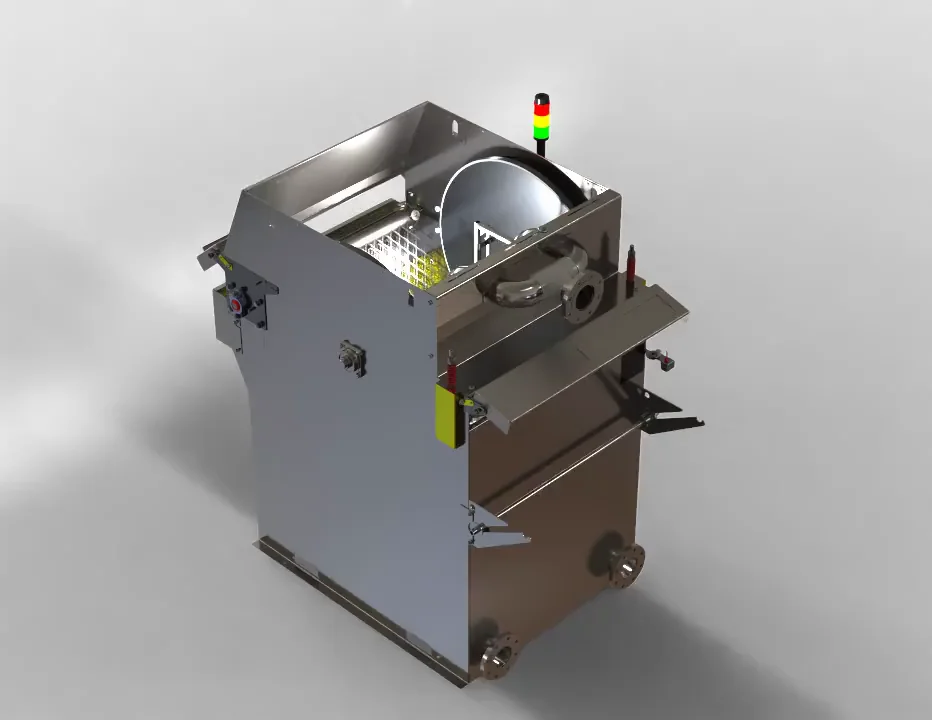

View 1 of 10
- Water-tight seal wheels — Hold the media edges — nothing bypasses.
- Inlet + header box — Spreads the flow evenly across the media.
- Easy-load media tray — A fresh roll drops in from the side.
- Clean-liquid tank — Filtered liquid returns to your process.
$600,000 a year saved — after 15 other makers said no.
A pulp and paper plant switched from city water to canal water — 450 GPM.
Read the storiesSend us your process parameters
Flow, what the solids are, and where the liquid goes next. We study the process before we quote — an engineer replies, not a sales script.
Or call 289-362-6108
